Spring与Mybatis基于注解整合Redis的方法

摘要：基于这段时间折腾redis遇到了各种问题，想着整理一下。本文主要介绍基于Spring+Mybatis以注解的形式整合Redis。废话少说，进...

基于这段时间折腾redis遇到了各种问题，想着整理一下。本文主要介绍基于Spring+Mybatis以注解的形式整合Redis。废话少说，进入正题。

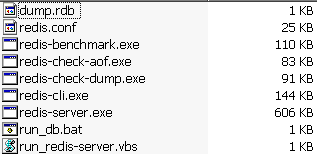

首先准备Redis，我下的是Windows版，下载后直接启动redis-server就行了，见下图：

Spring与Mybatis基于注解整合Redis的方法1

一，先上jar包

Spring与Mybatis基于注解整合Redis的方法2

二，创建实体类

package com.sl.user.vo; import java.io.Serializable; import com.fasterxml.jackson.databind.PropertyNamingStrategy; import com.fasterxml.jackson.databind.annotation.JsonNaming; import com.fasterxml.jackson.databind.annotation.JsonSerialize; @JsonSerialize @JsonNaming(PropertyNamingStrategy.LowerCaseWithUnderscoresStrategy.class) public class UserVO implements Serializable{ private static final long serialVersionUID = 1L; private int id; private String username; private String password; private int age; public UserVO(){ super(); } public UserVO(int id, String username, String password, int age) { super(); this.id = id; this.username = username; this.password = password; this.age = age; } public int getId() { return id; } public void setId(int id) { this.id = id; } public String getUsername() { return username; } public void setUsername(String username) { this.username = username; } public String getPassword() { return password; } public void setPassword(String password) { this.password = password; } public int getAge() { return age; } public void setAge(int age) { this.age = age; } @Override public String toString() { return "UserVO [id=" + id + ", username=" + username + ", password=" + password + ", age=" + age + "]"; } }

三，dao接口

package com.sl.user.dao; import com.sl.user.vo.UserVO; public interface UserDao { public void addUser(UserVO user); public void deleteUser(UserVO user); public void updateUser(UserVO user); public UserVO getUserById(int id); public UserVO getUser(int id); }

四，UserMapper

<"1.0" encoding="UTF-8" ?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" > <mapper namespace="com.sl.user.dao.UserDao" > <resultMap id="userResult" type="User"> <result column="id" property="id"/> <result column="userame" property="userame"/> <result column="password" property="password"/> <result column="age" property="age"/> </resultMap> <insert id="addUser" parameterType="User"> insert into t_user(username,password,age) values(#{username},#{password},#{age}) </insert> <update id="deleteUser" parameterType="User"> delete * from t_user where id = #{id} </update> <update id="updateUser" parameterType="User"> update t_user set <if test="username != null and username != ''"> username = #{username},</if> <if test="password != null and password != ''"> password = #{password},</if> <if test="age != null and age != ''"> age = #{age}</if> where 1=1 <if test="id != null and id != ''">and id = #{id}</if> </update> <select id="getUser" parameterType="int" resultType="User" > select * from t_user where id = #{id} </select> <select id="getUserById" parameterType="int" resultType="java.lang.String" > select username from t_user where id = #{id} </select> </mapper>

五，Service接口

package com.sl.user.service; import com.sl.user.vo.UserVO; public interface UserService { public void addUser(UserVO user); public void deleteUser(UserVO user); public void updateUser(UserVO user); public UserVO getUserById(int id); public UserVO getUser(int id); }

六，Service实现

package com.sl.user.service.impl; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.cache.annotation.CacheEvict; import org.springframework.cache.annotation.Cacheable; import org.springframework.stereotype.Service; import org.springframework.transaction.annotation.Propagation; import org.springframework.transaction.annotation.Transactional; import com.sl.user.dao.UserDao; import com.sl.user.service.UserService; import com.sl.user.vo.UserVO; @Service("userService") @Transactional(propagation=Propagation.REQUIRED, rollbackFor=Exception.class) public class UserServiceImpl implements UserService{ @Autowired private UserDao userDao; @Override @CacheEvict(value="User",key="addUser",allEntries=true) public void addUser(UserVO user) { userDao.addUser(user); } @Override @CacheEvict(value = {"getUser", "getUserById"}, allEntries = true) public void deleteUser(UserVO user) { userDao.deleteUser(user); } @Override @CacheEvict(value = {"getUser", "getUserById"}, allEntries = true) public void updateUser(UserVO user) { userDao.updateUser(user); } @Override @Cacheable(value="User",key="getUserById") public UserVO getUserById(int id) { return userDao.getUserById(id); } @Override @Cacheable(value="User",key="'getUser'") public UserVO getUser(int id) { return userDao.getUser(id); } }

七，Ctrl层

package com.sl.user.web; import java.util.HashMap; import java.util.Map; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Controller; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.ResponseBody; import com.sl.user.service.UserService; import com.sl.user.vo.UserVO; @Controller @RequestMapping("/userCtrl") public class UserCtrl { @Autowired private UserService userService; @RequestMapping("/addUser") public void addUser(UserVO user){ userService.addUser(user); } @RequestMapping("/deleteUser") public void deleteUser(UserVO user){ userService.deleteUser(user); } @RequestMapping("/updateUser") public void updateUser(UserVO user){ userService.updateUser(user); } @ResponseBody @RequestMapping("/getUserById") public Map<String,Object> getUserById(UserVO user){ Map<String,Object> map = new HashMap<String,Object>(); map.put("msg",userService.getUserById(4)); return map; } @ResponseBody @RequestMapping("/getUser") public Map<String,Object> getUser(UserVO vo){ Map<String,Object> map = new HashMap<String,Object>(); Object user = userService.getUser(4); map.put("msg",user.toString()); return map; } }

八，Redis关键类，用于CRUD操作

package com.sl.user.redis; import java.io.ByteArrayInputStream; import java.io.ByteArrayOutputStream; import java.io.IOException; import java.io.ObjectInputStream; import java.io.ObjectOutputStream; import org.springframework.cache.Cache; import org.springframework.cache.support.SimpleValueWrapper; import org.springframework.dao.DataAccessException; import org.springframework.data.redis.connection.RedisConnection; import org.springframework.data.redis.core.RedisCallback; import org.springframework.data.redis.core.RedisTemplate; public class RedisUtil implements Cache{ private RedisTemplate<String, Object> redisTemplate; private String name; public RedisTemplate<String, Object> getRedisTemplate() { return redisTemplate; } public void setRedisTemplate(RedisTemplate<String, Object> redisTemplate) { this.redisTemplate = redisTemplate; } public void setName(String name) { this.name = name; } @Override public String getName() { return this.name; } @Override public Object getNativeCache() { return this.redisTemplate; } /** * 从缓存中获取key */ @Override public ValueWrapper get(Object key) { System.out.println("get key"); final String keyf = key.toString(); Object object = null; object = redisTemplate.execute(new RedisCallback<Object>() { public Object doInRedis(RedisConnection connection) throws DataAccessException { byte[] key = keyf.getBytes(); byte[] value = connection.get(key); if (value == null) { return null; } return toObject(value); } }); return (object != null ? new SimpleValueWrapper(object) : null); } /** * 将一个新的key保存到缓存中 * 先拿到需要缓存key名称和对象，然后将其转成ByteArray */ @Override public void put(Object key, Object value) { System.out.println("put key"); final String keyf = key.toString(); final Object valuef = value; final long liveTime = 86400; redisTemplate.execute(new RedisCallback<Long>() { public Long doInRedis(RedisConnection connection) throws DataAccessException { byte[] keyb = keyf.getBytes(); byte[] valueb = toByteArray(valuef); connection.set(keyb, valueb); if (liveTime > 0) { connection.expire(keyb, liveTime); } return 1L; } }); } private byte[] toByteArray(Object obj) { byte[] bytes = null; ByteArrayOutputStream bos = new ByteArrayOutputStream(); try { ObjectOutputStream oos = new ObjectOutputStream(bos); oos.writeObject(obj); oos.flush(); bytes = bos.toByteArray(); oos.close(); bos.close(); }catch (IOException ex) { ex.printStackTrace(); } return bytes; } private Object toObject(byte[] bytes) { Object obj = null; try { ByteArrayInputStream bis = new ByteArrayInputStream(bytes); ObjectInputStream ois = new ObjectInputStream(bis); obj = ois.readObject(); ois.close(); bis.close(); } catch (IOException ex) { ex.printStackTrace(); } catch (ClassNotFoundException ex) { ex.printStackTrace(); } return obj; } /** * 删除key */ @Override public void evict(Object key) { System.out.println("del key"); final String keyf = key.toString(); redisTemplate.execute(new RedisCallback<Long>() { public Long doInRedis(RedisConnection connection) throws DataAccessException { return connection.del(keyf.getBytes()); } }); } /** * 清空key */ @Override public void clear() { System.out.println("clear key"); redisTemplate.execute(new RedisCallback<String>() { public String doInRedis(RedisConnection connection) throws DataAccessException { connection.flushDb(); return "ok"; } }); } @Override public <T> T get(Object key, Class<T> type) { return null; } @Override public ValueWrapper putIfAbsent(Object key, Object value) { return null; } }

九，Spring整合mybatis和redis配置文件

<"1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p" xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:cache="http://www.springframework.org/schema/cache" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd http://www.springframework.org/schema/cache http://www.springframework.org/schema/cache/spring-cache.xsd"> <> <context:component-scan base-package="com.sl.user.service" /> <context:component-scan base-package="com.sl.user.service.*" /> <context:component-scan base-package="com.sl.user.redis" /> <> <context:annotation-config/> <> <cache:annotation-driven/> <> <> <bean id="dataSource"> <property name="driverClassName" value="com.mysql.jdbc.Driver"></property> <property name="url" value="jdbc:mysql://127.0.0.1:3306/test"></property> <property name="username" value="root"></property> <property name="password" value="root"></property> </bean> <> <bean id="sessionFactory"> <property name="dataSource" ref="dataSource"></property> <property name="configLocation" value="classpath:config/mybatis.xml"></property> <property name="mapperLocations" value="classpath:mapper/UserMapper.xml"></property> </bean>  <bean> <property name="sqlSessionFactory" ref="sessionFactory"></property> <property name="basePackage" value="com.sl.user.dao"></property> </bean> <> <bean id="txManager"> <property name="dataSource" ref="dataSource"></property> </bean> <> <tx:annotation-driven transaction-manager="txManager"></tx:annotation-driven> <> <> <> <bean id="poolConfig"> <property name="maxIdle" value="300" /> <property name="maxTotal" value="600" /> </bean> <> <bean id="connFactory"> <property name="hostName" value="127.0.0.1"></property> <property name="port" value="6379"></property> <property name="poolConfig" ref="poolConfig"></property> </bean> <> <bean id="redisTemplate"> <property name="connectionFactory" ref="connFactory"/> </bean> <bean id="cacheManager"> <property name="caches"> <set> <bean> <property name="redisTemplate" ref="redisTemplate" /> <property name="name" value="User"/> <> </bean> </set> </property> </bean> </beans>

十，SpringMVC配置文件

十一，mybatis配置文件

<"1.0" encoding="UTF-8"?> <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd"> <configuration> <> <typeAliases> <typeAlias alias="User" type="com.sl.user.vo.UserVO" /> </typeAliases> </configuration>

十二，log4j

# Set root category priority to INFO and its only appender to CONSOLE. log4j.rootCategory=DEBUG, CONSOLE #log4j.rootCategory=INFO, CONSOLE, LOGFILE # CONSOLE is set to be a ConsoleAppender using a PatternLayout. log4j.appender.CONSOLE=org.apache.log4j.ConsoleAppender log4j.appender.CONSOLE.Threshold=DEBUG log4j.appender.CONSOLE.layout=org.apache.log4j.PatternLayout log4j.appender.CONSOLE.layout.ConversionPattern=%d{yyyy-MM-dd HH:mm:ss} %p - %m%n log4j.logger.java.sql.Connection=DEBUG log4j.logger.java.sql.Statement=DEBUG log4j.logger.java.sql.PreparedStatement=DEBUG log4j.logger.java.sql.ResultSet=DEBUG

十三，web.xml

<"1.0" encoding="UTF-8"?> <web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"> <display-name>TestRedis</display-name> <context-param> <param-name>contextConfigLocation</param-name> <param-value> classpath:config/applicationContext.xml </param-value> </context-param> <context-param> <param-name>log4jConfigLocation</param-name> <param-value>classpath:config/log4j.properties</param-value> </context-param> <context-param> <param-name>log4jRefreshInterval</param-name> <param-value>60000</param-value> </context-param> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <> <listener> <listener-class>org.springframework.web.util.Log4jConfigListener</listener-class> </listener> <servlet> <servlet-name>spring</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:config/SpringMVC.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>spring</servlet-name> <url-pattern>*.do</url-pattern> </servlet-mapping> <> <filter> <filter-name>characterEncoding</filter-name> <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class> <init-param> <param-name>encoding</param-name> <param-value>UTF-8</param-value> </init-param> <init-param> <param-name>forceEncoding</param-name> <param-value>true</param-value> </init-param> </filter> <filter-mapping> <filter-name>characterEncoding</filter-name> <url-pattern>*.do</url-pattern> </filter-mapping> <welcome-file-list> <welcome-file>index.jsp</welcome-file> </welcome-file-list> </web-app>

十四，测试，已查询为例(getUser()方法)，jsp测试页面整的比较丑就不贴出来了，自己写一个吧。。。

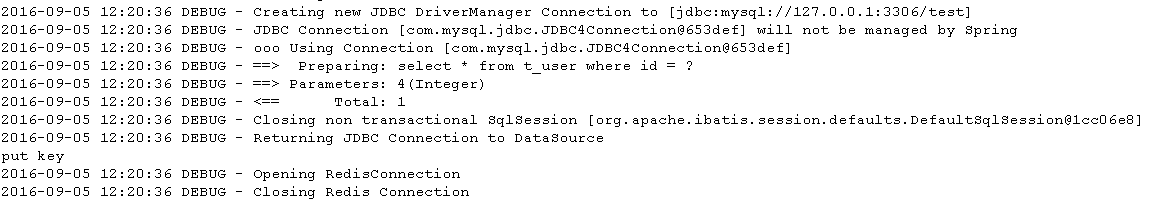

查询前：

Spring与Mybatis基于注解整合Redis的方法3
